Lino Hub 3D Web
Your interactive showcase for complex industrial products
Lino Hub 3D Web brings complex products to life online: real-time parametric 3D configuration directly in the browser—no plugins required. Variants, materials, and features are immediately visible, while your CAD logic remains protected. For better decisions, seamless integration, and a compelling digital sales experience.
Maximum visual control and user experience –
3D configuration directly in the browser
In today’s digital sales landscape, a static price list is no longer enough. Customers want to experience products before they buy. Lino Hub 3D Web is the powerful module of the Lino Hub integration platform that enables real-time parametric 3D visualization.
Without the need for additional plugins or software installations, it transforms your web browser into an interactive sales tool that renders even the most complex machine models with high performance and photorealistic quality.
Live configuration without compromise

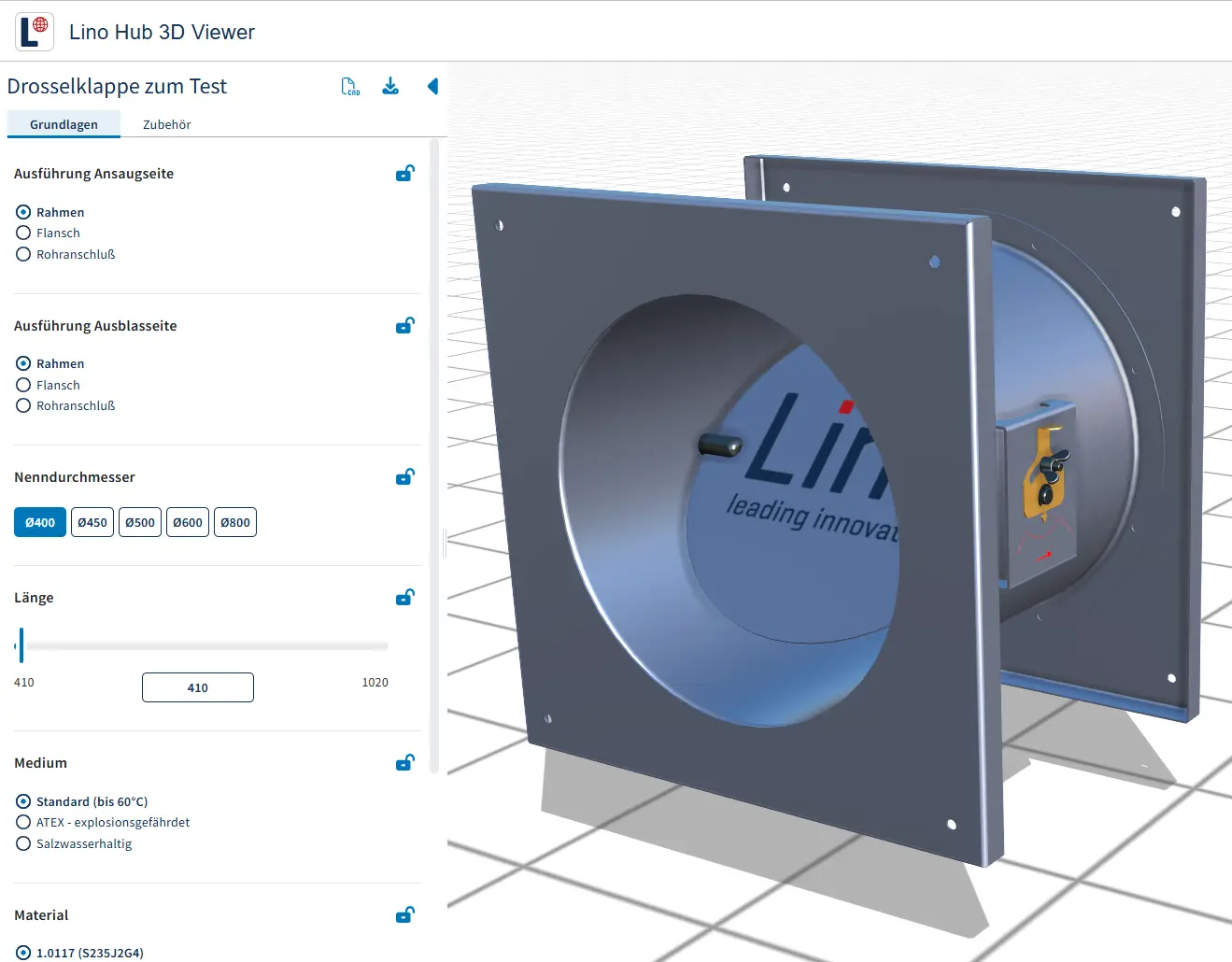

Live Configuration: Thanks to state-of-the-art WebGL technology, Lino Hub 3D Web enables dynamic interaction with the product. Customers or sales representatives can configure product variants and immediately see the effects of changes to dimensions, materials, colors, and features in the 3D view.
The solution utilizes the logic and parameters of your CAD data (e.g., from SolidWorks) and visualizes them on the web or within enterprise software. This ensures excellent performance on the web while simultaneously protecting your valuable company know-how from unauthorized access to design details.
Seamless integration into your IT landscape
As part of the Lino Hub platform, the 3D web module can be seamlessly integrated into online stores, websites, or existing CRM and ERP systems. It serves as a bridge between commercial configuration and technical reality.
A special highlight: With the click of a button, users can request CAD data or drawings of the current configuration directly from the web view, which are automatically generated and made available in the background.
Benefits of Lino Hub 3D Web
Bring your products to life online – with Lino Hub 3D Web.
The seamless integration of sales, design, and manufacturing ensures that technical data is created and processed without any data gaps. Automated CAD processes improve data quality, speed up order processing, and make growth more predictable.
See for yourself, using your specific use case, how complex processes are simplified, systems are integrated and automation delivers measurable results.
- Practical demo with realistic use cases
- The next step for your digital transformation project
- Measurable benefits and ROI in record time
Lino Hub Platform
Additional modules for end-to-end automation
The Lino® Hub has a modular design and scales to meet your needs. The following modules specifically enhance CAD automation with visualization, product planning, and layout capabilities—seamlessly integrated into a central platform for end-to-end, automated processes.
CAD Automation
Core
Customer Success Stories

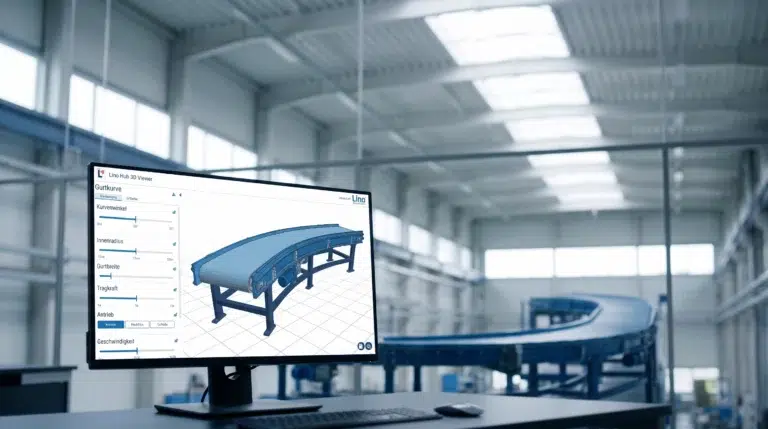

Still Planning Facility Layouts on 2D Floor Plans? You Are Risking the Contract!
Three days to build a variant that a rule set could have generated in minutes. Why manual design processes are no longer defensible.
Manual 3D model simplification isnt a process. Its a waste of resources.
Simply integrate. Intelligently automate.
Digital engineering processes for mechanical and plant engineering: Automate design, product configuration, and workflows; seamlessly integrate CAD, PDM, and ERP; and accelerate sales, planning, and manufacturing—efficiently, error-free, and with future-proof connectivity.
Webinars
Register now for our free webinar or contact an expert for a personalized consultation.
Our webinars are intended exclusively for companies within our defined target audience.
Frequently Asked Questions
Knowledge base on online configuration, real-time visualization, and system integration.
Here, we answer questions about browser-based 3D visualization in the configuration process.
Discover how variants are displayed in real time and seamlessly integrated with CPQ, ERP, and CAD systems.
What is Lino Hub 3D web?
Lino Hub 3D web is a web-based 3D visualization tool for product configuration. The visualization is based on parameterized CAD models and transfers the geometry directly to the web. All product variants are displayed in real time without plugins directly in the web browser. The software can be integrated flexibly into web shops or customer portals.
How does Lino Hub 3D web support sales and customer interaction?
With interactive 3D views, product variants can be rotated, zoomed, and inspected from different perspectives in the browser. Customers receive immediate visual feedback, which accelerates purchasing decisions and improves the customer experience.
Does the 3D visualization work without additional software?
Yes. Lino Hub 3D web uses modern WebGL technology so that 3D visualization can be integrated into all common browsers without additional plugins – for end customers, sales teams, or project planners.
Can Lino Hub 3D web display CAD models directly?
Yes. Lino Hub 3D web displays parametric 3D models and can, on request, incorporate CAD models as well as prices and additional information from CPQ systems such as Tacton CPQ or SAP CPQ.
Can Lino Hub 3D web be integrated into existing systems?
Yes. The 3D viewer can be embedded into web shops, customer portals, or CRM interfaces to provide interactive product presentations online. The Lino Hub 3D web viewer is designed for integration into existing system landscapes and can be connected to shops, customer portals, and existing CPQ, ERP, or CRM systems. Product logics, prices, and configuration data are processed centrally in Lino Hub and displayed in real time in the 3D viewer. Users thus receive consistent visualizations based on valid product data, enabling end-to-end processes from the online configurator through to quotation and order processing.
Can users request CAD documents via Lino Hub 3D web?
In many use cases, 3D web enables CAD data and drawings to be created and distributed at the push of a button. The configured variants can then be used and further processed for technical or sales purposes.
How does Lino Hub 3D web differ from Lino 3D web?
Lino 3D web is a browser-based 3D viewer for parametric product visualization and interactive configuration on the web using the Tacton Configurator (end-of-life), displaying variants in real time without browser plugins. Lino Hub 3D web, in contrast, is part of the Lino Hub integration platform and links 3D web visualization with central data and automation processes. Lino Hub 3D web combines system-independent integration, data linking, and workflow control between ERP, CRM, configuration, CAD automation, and web-based 3D representation – enabling seamless, web-based product configuration and output in real time.
What distinguishes Lino Hub 3D web from other visualization tools?
Lino Hub 3D web reads geometry directly from the CAD model and transfers it to the web. Compared to many visualization tools on the market, the 3D viewer does not require an intermediate step or additional software just to generate a special data format for web display. All changes, which typically occur via versioning on the CAD model, are automatically propagated. This drastically reduces maintenance effort.
For which companies is Lino Hub 3D web particularly useful?
Lino Hub 3D web is particularly useful for companies in mechanical and plant engineering and for manufacturers of complex, highly configurable products. The software is ideal for companies that want to digitalize their product configuration and provide customers or sales teams with interactive 3D visualization in the browser. Companies with technologically complex products, long quotation processes, or international sales benefit especially, because product variants can be visualized in real time and integrated across systems into ERP, CPQ, or CAD processes.
